MINI X

Mini X

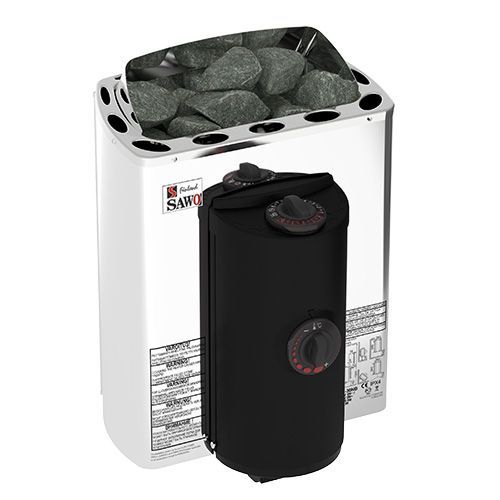

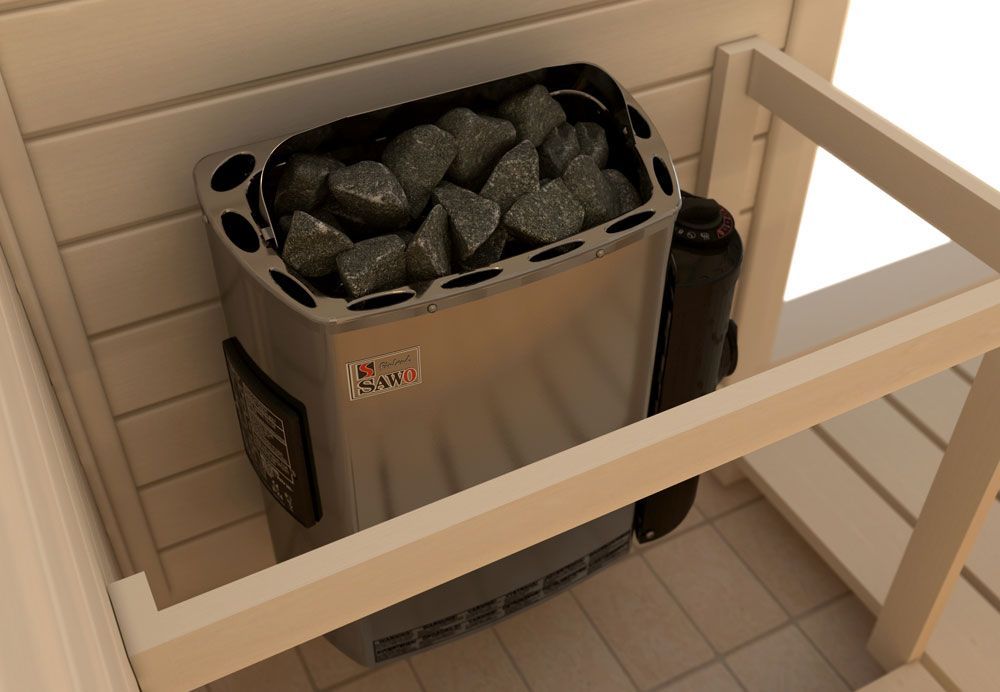

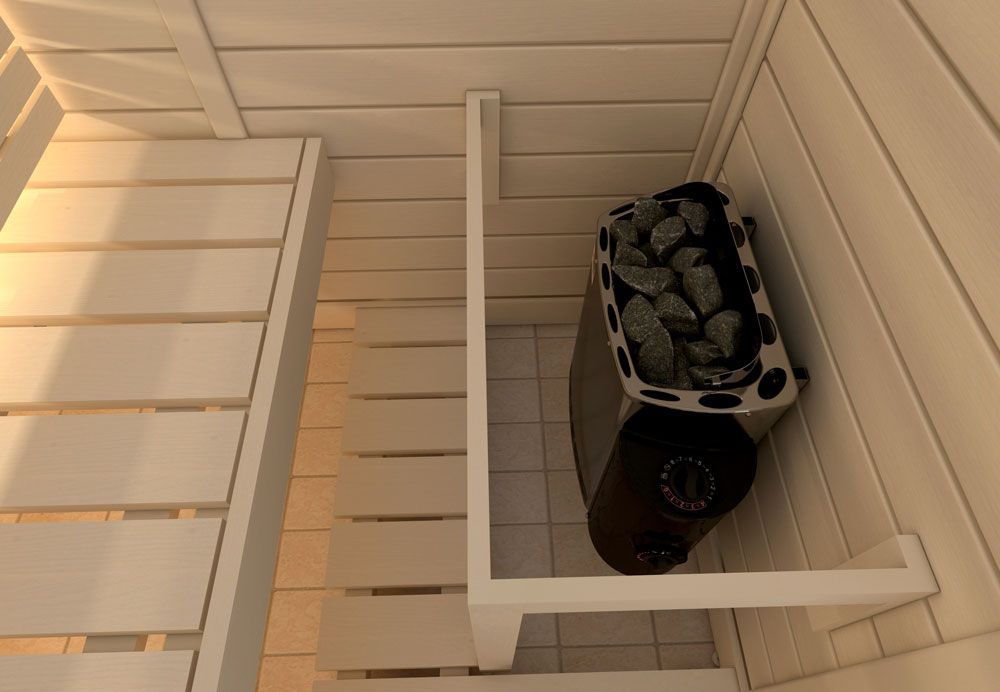

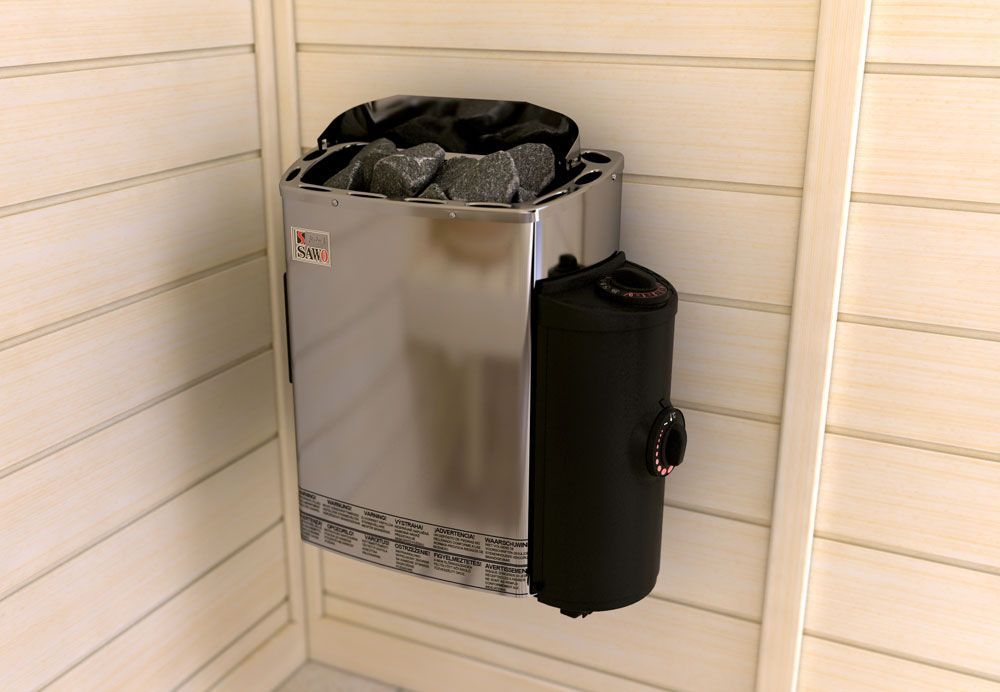

Mini X is an ideal heater for sauna rooms with extremely limited space. It is placed in corner of sauna room, allowing the maximum space for sauna use. Mini X has 11 kg stone space. It can be controlled either with built-in or separate control units.

Insallation Diagram

Quick

Easy Install

Premium Customer Service

Add Value To Your Home

Technical Data

Heater Model Number Kilowatt (KW) Sauna Room Min (M3) Max Control Size Of Heater (MM) Width Depth Height Stone (KG)
MX-23NB 2.3 1.3 - 2.5 8 + 4h 330 – 315 – 500 8 - 10.5
MX-30NB 3.0 2 - 4 8 + 4h 330 – 315 – 500 0 – 450 8 - 10.5
MX-36NB 3.6 3 - 6 8 + 4h 330 – 315 – 500 8 - 10.5
MX-23NS 2.3 1.3 - 2.5 Separate 330 – 210 – 500 8 - 10.5
MX-30NS 3.0 2 - 4 Separate 330 – 210 – 500 8 - 10.5
MX-36NS 3.6 3 - 6 Separate 330 – 210 – 500 8 - 10.5
