SAWO Innova Controls . . .



If you chose a sauna heater which does not incorporate in-built temperature and timer controls a separate standalone SAWO controller will be required.



There are 3 different types of the SAWO Innova Controls available to match your needs and preferred style, the Classic, the Touch and the new Stainless Steel Touch.  All of these controls are very powerful with switching capacity of up to 15kW depending upon the power supply, above that a SAWO Contactor Unit must be added.

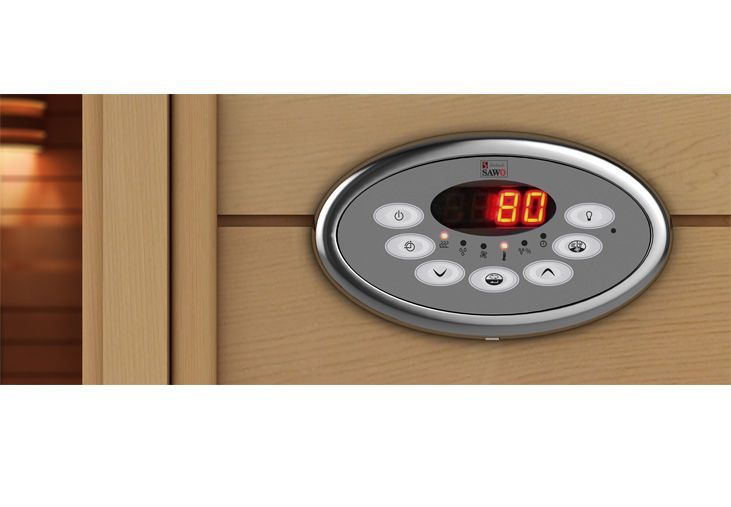

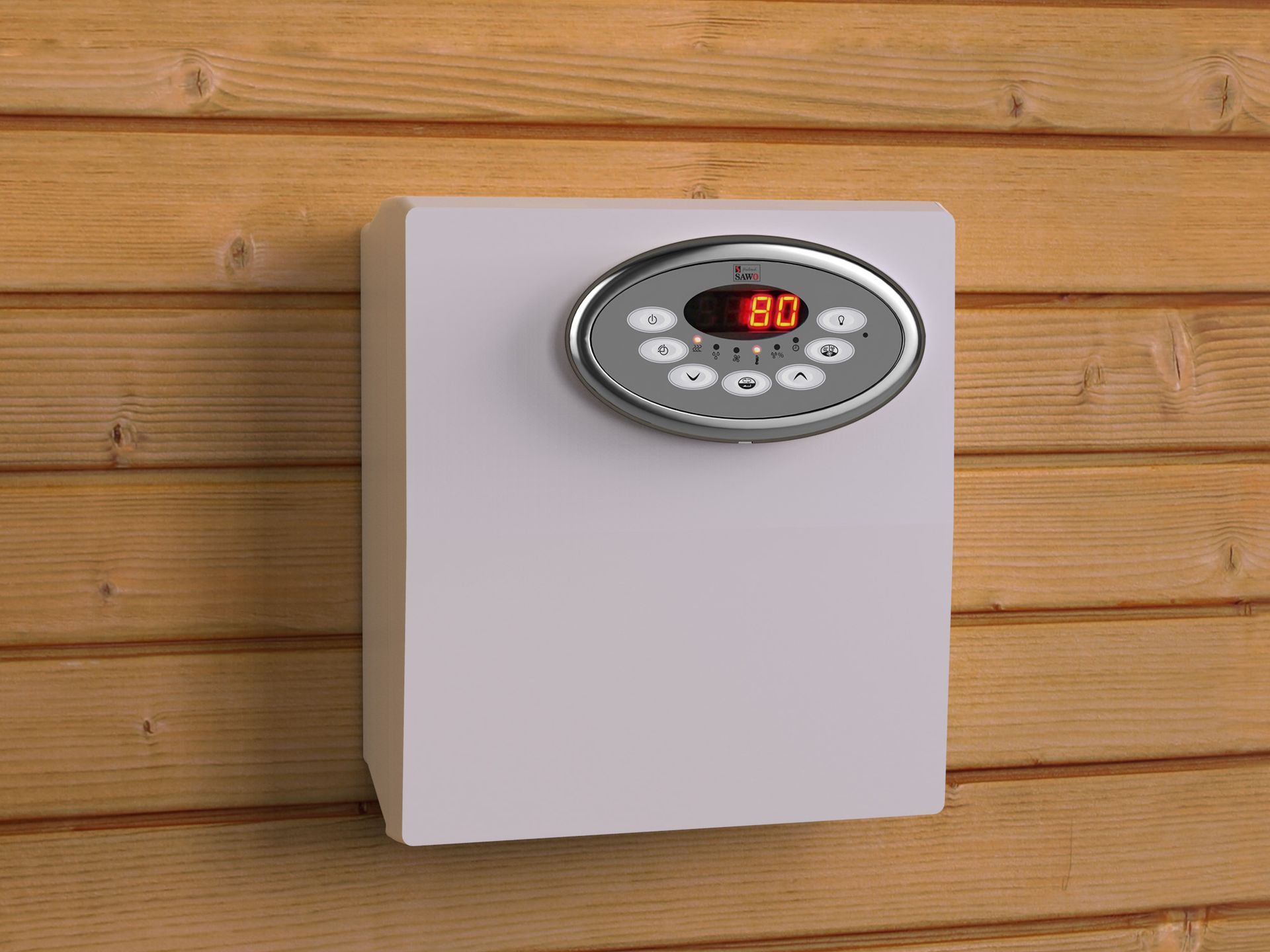

Innova Classic Control . . .



This is a traditional push button controller with an LED display for easy reading.  It comes with either a

built-in or separate power controller and is simple to use.  It has standard features such as a timer,

a smart energy saving and even power distribution.

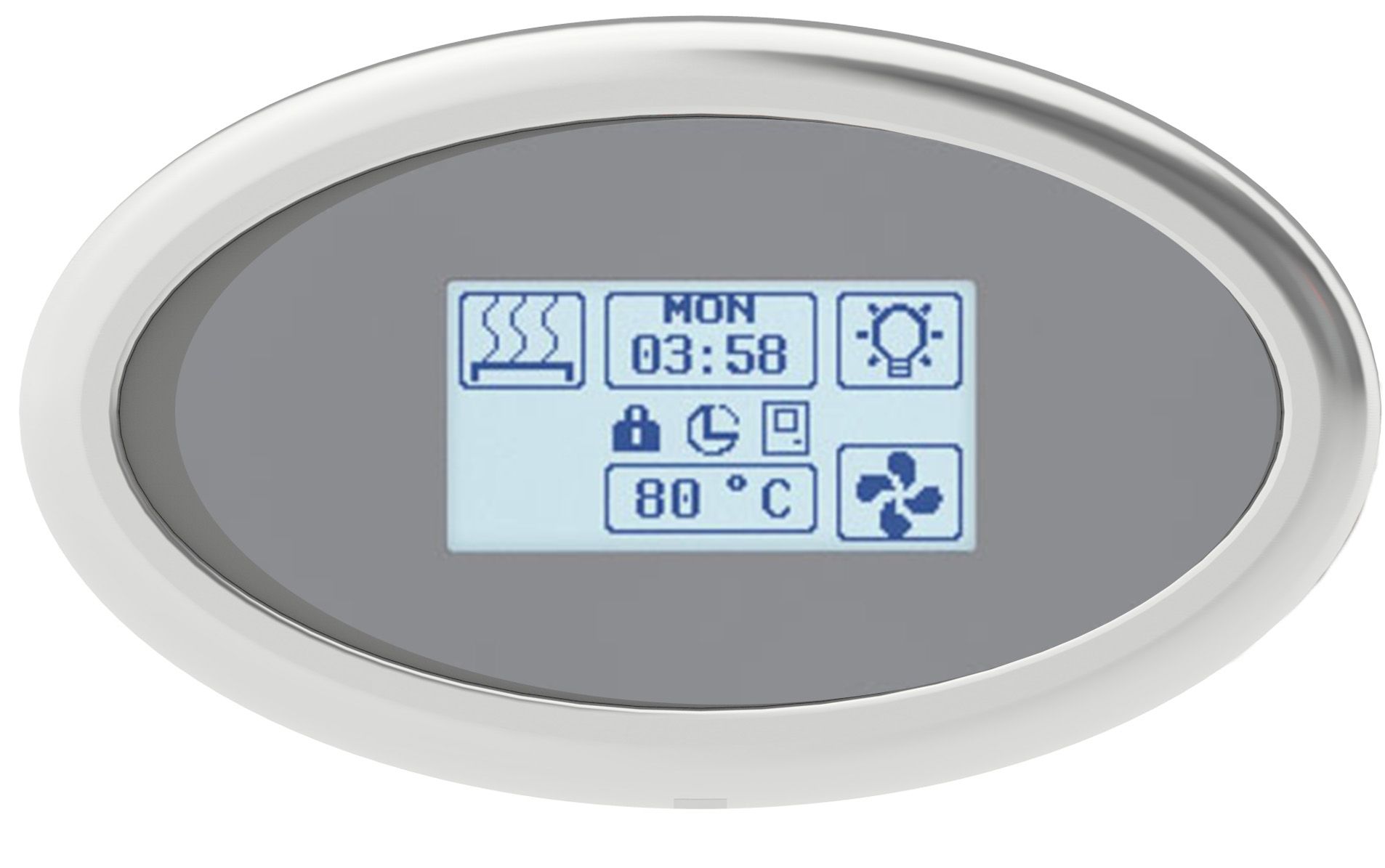

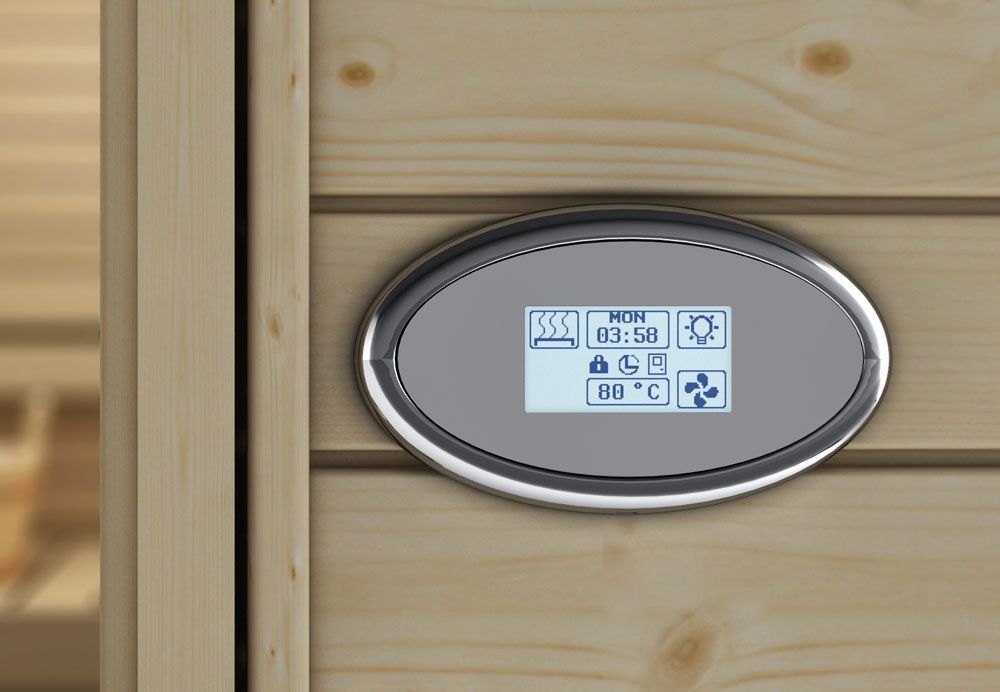

Innova Touch Control . . .



This controller has a modern LCD touch screen with state-of-the-art technology.  In addition to the Innova Classic features it also includes an easy to use weekly pre-set timer function which can be particularly advantageous in commercial environments.

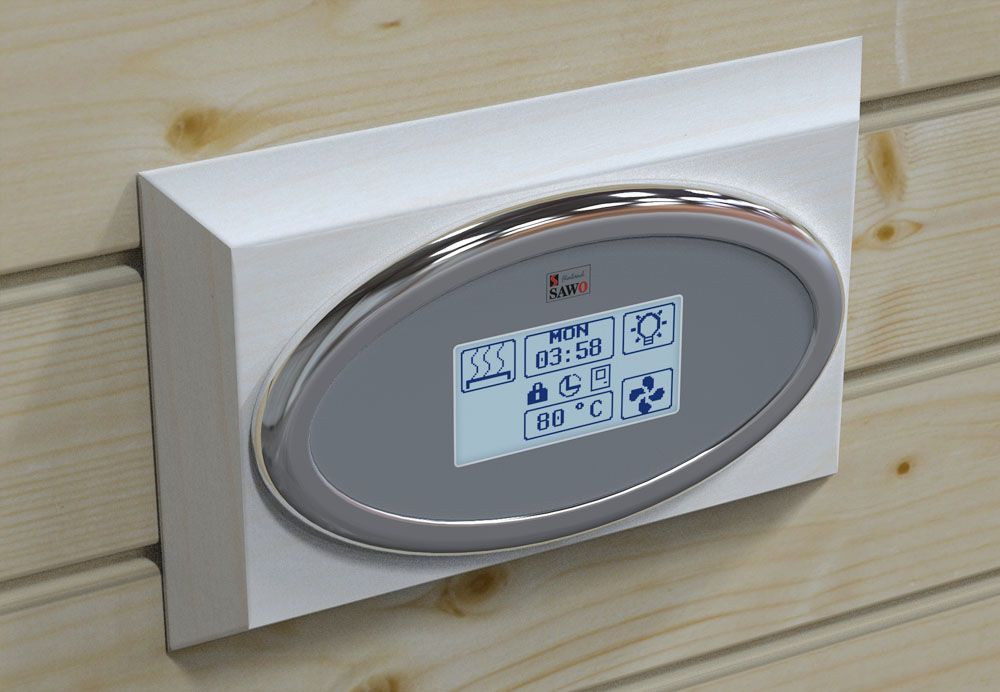

Innova Stainless Steel Touch . . .



A new additional to the Innova range which includes the same features and interface as the Innova Touch. However, the sleek and modern stainless metal casing can be flush mounted so that it only protrudes 1.5mm from the wall.





The Sauna Company - Stockists of SAWO Sauna & Steam products in Victoria, Australia.
The Sauna Company - Stockists of SAWO Sauna & Steam products in Victoria, Australia.
The Sauna Company - Stockists of SAWO Sauna & Steam products in Victoria, Australia.
Innova Features . . .

  • Switching capacity of 15kW (3 x 5kW)

  • Display of cabin pre-set temperature and humidity

  • Single phase operation with up to 9kW switching capacity

  • Individual control of heating elements

  • Precise maintaining of set temperature

  • Even utilization of heating elements

  • Maximum sauna session time of 4, 6, 12, 18 or 24 hour adjustable through hardware configuration (restrictions according to IEC/EN 60335-2-53 apply)

  • Temperature range 40 - 110°C

  • Self-learning pre-run timer

  • Key-lock function

  • Weekly pre-set timer function (Touch control)



Click here to download the latest Innova Controls brochure.

​



​
